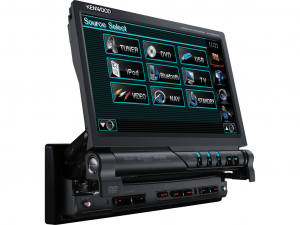

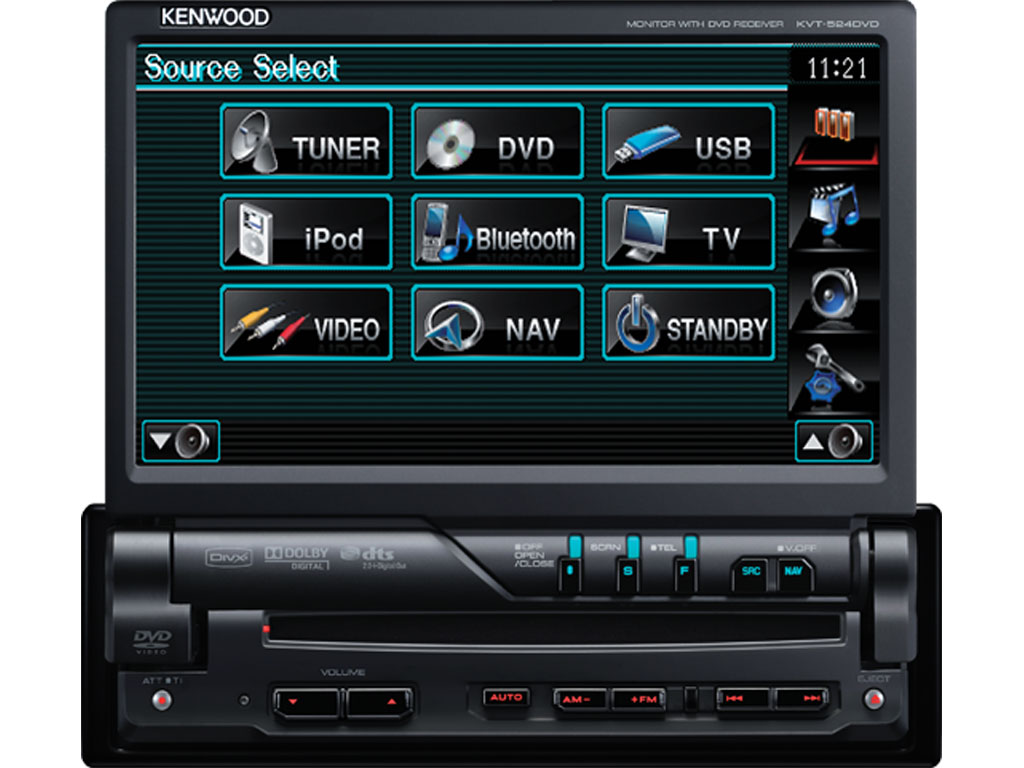

7.0 inch Interactive Touch Panel Control with Full Graphic User Interface
Z-action open/close mechanism with tilt angle and back & forth position control
DVD Video/-VR/±R/RW, DivX, MPEG 1/2 Video File (.mpg) & JPEG File (.jpg), AAC, WMA, MP3 playback
1 USB interface (rear)
iPod direct control
Works with iPhone
Variable illumination (GUI)
2 RCA preouts (2V)
Easy installation, NO blackbox to install
Bluetooth Handsfree / Audio streaming with KCA-BT200
General Features
DIN Size: 1 DIN
Detachable Faceplate: No
Disabled System Indicator (DSI): Yes
Security Code Function (Fixed): Yes
On Screen Display (OSD) Operation: Yes
Smooth GUI: Yes
Selectable GUI Background Wallpaper: Yes
External Hard-key Operation when monitor closed: Yes
Key Illumination panel key: Variable, hard key: red
Installer Memory: Yes
Back-up Memory: Yes
Attenuator with Smooth Volume Return: Yes
Touch Sensor Tone: Yes
IR Remote Sensor: Yes
Digital Clock (24H): Yes
ISO connector: Yes
Made for iPod: Yes
Monitor Features
In-Dash/On-Dash: In-Dash
LCD Type: TFT 7,0" Wide
Display Mode: 4 Mode (Full/Just/Zoom/Normal)
Screen Adjustments: Brightness/Tint/Color/Contrast/Black Level/Dimmer
Auto Dimmer: Manual
Visual Source Mode: DVD/Video/Navigation/(TV)/USB/iPod
Touch Panel: Yes
Mechanism type: Z-action open/close
Mechanism Slide Adjustment: Yes, 4 positions
Mechanism Angle Adjustment: 8 steps
NTSC/PAL judge: Auto
Multimedia GUI Features
OSDC Type: Full Graphics
Colour Pallet: 256
Base Colour Class: 65000
Menu character font: English
Text: English, Greek, Cyrillic
Background Customize: Yes
Tuner Features
RDS (PI, PS, AF, TI, Clock): Yes
Radio Text Plus: Yes
Program Type Function (PTY): Yes
Enhanced Other Networks Function (EON): Yes
K3I - Clean Reception Tuner: Yes
FM Reception: Yes
AM (MW/LW) Reception: Yes
Presets: 24 Presets (18FM / 3LW / 3MW)
Station Select: List
Automatic Memory Entry (AME): Yes
Up/Down Seek Tuning: Yes
Tuning mode (Auto1 / Auto2 / Manual): Yes
FM Stereo / Mono Selector: Yes
DVD-Features
Mechanism: DVS-8500
Disc Capacity: 1 Disc(s)
DVD±R/RW Compatible: Yes
DVD Region Code: 2
VCD Compatible: Yes
CD-R/RW Compatible: Yes
CD Text: Yes
MP3: Yes
ID3 Tag: Yes
WMA: Yes
WMA Tag: Yes
AAC: Yes
AAC Tag: Yes
Digital/Analog Converter: 24 bit
Shock Proof: Yes
2nd Disc Prevention Mechanism: Yes
MPEG1/2 Video File (.mpg) Compatible: Yes
JPEG File (.jpg) Compatible: Yes
DivX (Certified): Yes
CD-DA Repeat/Scan/Random play: Yes
Direct Search: Yes
Time Code Display: Yes
Resume Play: Yes
Zoom Control (DVD/VCD): Yes
Disc Menu Direct Touch: Yes
Picture Control (JPEG): Yes
USB Features
USB Interface port: Yes, rear side
USB Type: USB1.1 / USB 2.0
USB extension cable supplied: no
MP3 playback with ID3 Tag Display: Yes
WMA (Windows Media File) playback: Yes
AAC (Advanced Audio Codec) playback: Yes
MPEG1 Video decoder: Yes
MPEG2 Video Decoder: Yes
iPod Features
USB Direct control (2 wire): Yes, with optional cable KCA-iP200
USB Video & Audio direct control (3 wire): Yes, with optional cable KCA-iP301V
Music playback: Yes
Video playback: Yes
Alphabet search: Yes
Skip search: Yes
Control by hand: Yes, only for iPod nano 2G/3G/4G, iPod Classic, iPod Touch & iPhone
Works with iPhone: Yes
Battery charge: Yes
Audio features
Max. Output Power (MOSFET Power IC): 4 x 50W
Pre-out 2RCA: Front/Rear
Pre-out Output Level: 2V
Auxiliary Input: No
Rear / Subwoofer Switchable: Yes
Subwoofer Reference Level Adj.: Yes
Dual Zone Source & Volume Control: Yes
Dual Zone (FRONT / REAR Switchable): Yes
Source Tone Control & Memory: Bass / Mid / Treble
Balance/Fader Control: Yes
Loudness Control: Yes
Att.(-20dB) with smooth Volume Return: Yes
System QEX (Preset & Manual Sound Control): Yes
System E's+ (Built-in HPF & LPF): Yes
Beep On/Off: Yes
Video Features
Audio/Video Output: 1 RCA
Audio/Video Input: Yes, Selectable AV-input or Rear view camera input
Video-In for Rear-view Camera: Selectable AV-input or Rear view camera input
Mirror-mode on Rear-view Image: Yes
Detection Mode Rear View Camera: Reverse sensor wire
DVD Menu Direct Touch Operation: Yes
MPEG Decoder: Yes
TV ready: Yes
Connectivity
PS Amplifier Control System (5L-Bus): No
External Media Control BUS (KAB): Yes
Bluetooth Control (KAB-Bus): Yes
iPod Direct Control (2 wire): Yes
iPod Video Direct Control (3 Wire): Yes
OEM Wired Remote Control: Yes
Parking sensor wire: Yes
Reverse sensor wire: Yes
Power Control (P.CON) wire: Yes
2-way (Tel/Navi) mute wire: Yes
Dimmer control wire: Yes
TV Tuner Control: Yes
Navigation RGB Input: Yes
Tuner Specifications
FM Frequency Range: 87.5MHz ~ 108MHz
FM Frequency: Step 50kHz
FM Usable Sensitivity: 0.7μV/750ohm (S/N 26dB)
FM Quieting Sensitivity: 1.6μV/75ohm (S/N 46dB)
FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
FM Selectivity(DIN): over 80dB (±400kHz)
FM Stereo Separation (1kHz): 35dB
MW Frequency Range: 531kHz ~ 1611kHz
MW Frequency step: 9kHz
MW Usable Sensitivity: 25μV (S/N 20dB)
LW Frequency Range: 153kHz ~ 281kHz
LW Usable Sensitivity: 45μV (S/N 20dB)
DVD Specifications
D/A Converter: 24 bit
Video decoder: Linear PCM/Dolby Digital/dts/MLP/MP3/WMA/AAC
Audio decoder: MPEG1/MPEG2/MPEG4(DivX)
Wow & Flutter: Below Measurable Limit
Freq. Resp. (96kHz Sampling): 20Hz ~ 44kHz
Freq. Resp. (48kHz Sampling): 20Hz ~ 22kHz
Freq. Resp. (44,1kHz Sampling): 20Hz ~ 20kHz
Total Harmonic Distortion: 0.01% (1kHz)
Signal to Noise Ratio: 98dB (1kHz)
Dynamic Range: 98dB
Disc Format: DVD-Video/Video-CD/CD-DA
FM Signal to Noise Ratio: 65dB(MONO)
Sample Frequency: 44.1kHz/48kHz/96kHz
Quantifying bit number: 16/20/24bit
USB Specifications
USB Version compatibility: 1.1 / 2.0
File System: FAT 16/32
Maximum Supply current: 500mA
D/A Converter: 24 bit
MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
WMA Decode: Compliant with Windows Media Audio
AAC Decode: AAC-LC "m4a" Files
WAV Decode: no
Audio Specifications
Maximum Power: 50W x 4
Output Power (DIN45324,+B=14.4v): 30W x 4
Preout Level: 2000mV / 10kOhm,
Preout Impedance: 600Ohm
Speaker Impedance: 4Ohm ~ 8Ohm
Bass Tone Control: 100Hz ±10dB
Middle Tone Control: 1kHz ±10dB
Treble Tone Control: 10kHz ±10dB
Video Specifications
Color System of External Video Input: NTSC/PAL
External Video Input Level (RCA): 1Vpp / 75Ohm
External Audio Max. Input Level (RCA): 2V / 25kOhm
Video Output Level (RCA): 1Vpp / 75Ohm
Audio Output Level (RCA): 1.2Vpp / 10kOhm
Monitor Specifications
Screen size (Diagonal): 6.97 Inches Wide
Screen Size (WxH): 154.008 x 86.58mm
Display system: Transparent TN LCD Panel
Drive system: TFT Active Matrix System
Number of Pixels: 336960pixels (480(H) x 234(V) x RGB)
Effective pixels: 99.99%
Pixel arrangement: RGB Striped
Back lighting: Cold Cathode Fluorescent Tube
Accessories
Release keys: 2 pieces
Escutcheon: Yes
Installation Sleeve: Yes
DC cord (Molex to ISO): 20 cm
General Specifications
Operating voltage: 14.4V (11 ~ 16V Allowable)
Maximum Current Consumption: 15A
Dimensions (WxHxD): 182 x 53 x 160mm
Weight: 2300gr
Operation Temperature Range: -10°C ~ 60°C
Storage Temperature Range: -20°C ~ 85°C |
